The MCT200 ultrasonic thickness gauge is a handheld coating thickness gauge. The USD interface can be used to transmit data, the LED display clearly shows reading, which is easy to read data, and the body is light and easy to carry. Through ultrasound, it can quickly and accurately detect the thickness of the coating without causing damage, as well as the thickness of films, paper, and aluminum tiles. It can be widely used in manufacturing, metal processing, chemical, commodity inspection and other testing fields. It is a professional tool for material protection.
1. With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate.
2. Five types of probes (F400, F1, F10, N1, CN02) are available for different application. F10 probe measures up to 10mm.
3. Two measuring modes: single or continuous, changeable.
4. Two calibration methods can be applied to the gauge; And the system error of the probe can be corrected with the basic probe calibration method.
5. Measured values and user information are shown on a large, easy-to-read LCD. A display back light ensures easy reading of screen data in poorly-lit conditions.
6. The gauges’ user-friendly measuring system permits automatic storage of up to 1000 readings in one memory matrix for later statistical evaluation.
7. Battery information indicates the rest capacity of the battery.
8. Auto sleep and auto power off function to conserve battery life.
9. USB1.1 communication port. Optional software to process the stored data on the PC.
10. Compact aluminum case,suitable for use under poor working
1. Measuring principle: Magnetic induction & Eddy current
2. Measuring range: (0~1250) μm, depends on probes. maximum 10mm for the probe F10. Refer to Appendix.
3. Low range resolution: 0.1μm l Accuracy: ±(3%Thickness+1) μm, depends on probes and conditions
4. Memory for up to 20 files (up to 50 values for each file) of stored values.
5. Unit system: Metric (μm),Imperial (mil)
6. Power source: Two “AA” size, 1.5 Volt alkaline batteries. 200 hours typical operating time (EL backlight off).
7. Communication:USB1.1
8. Dimensions:125mm×67mm×31 mm

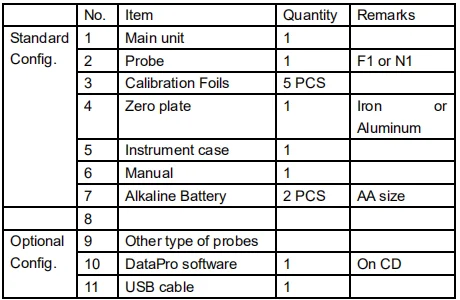

Configuration
Working Conditions
1. Working temperature: -10℃~+50℃;
2. Storage temperature:-30℃~+60℃;
3. Relative humidity: ≤90%;
4. The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.
Handheld GM100 Ultrasonic Thickness Gauge
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
Delivery
Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea can be optional.
